Continuous high temperature graphitization furnace

Continuous Graphitising Furnace is usually applied to all kinds of carbon materials under the protection of various inert atmospheres, continuously after the temperature of 2000-3000 ℃, the hexagonal mesh structure began to rearrange, began to grow to the plane grid, in some areas to form part of the graphite network stacked in an orderly manner, resulting in graphite crystals, and to increase the internal carbon content of a kind of high-temperature furnace. At present, the continuous graphitization furnace produced by our company is only suitable for the continuous graphitization production with round calibre, small square calibre or wide flat calibre in the inlet and outlet, or the graphitization of various carbon materials with small heat capacity, such as various high modulus asphalt-based carbon fibres, phase-grown carbon fibres, silicon carbide fibres, graphite paper, etc., which are subjected to a certain degree of tension and are capable of self-pulling materials.

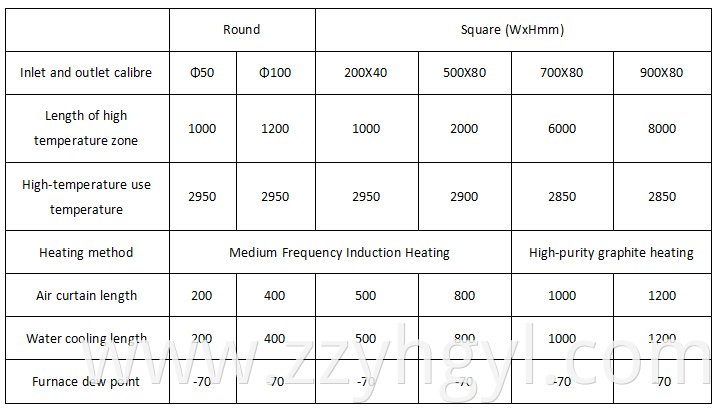

Product Parameter

Product Characteristics

- Ultra-high-temperature furnace body, which can fully meet the sintering and graphitising of various materials.
- Multi-channel air inlet and exhaust ports are reserved to complete a variety of complex processes.
- High-precision imported infrared thermometer to ensure the accuracy of temperature measurement.
- Adopting digital intelligent temperature control system, fully automatic and high precision to complete the process of temperature measurement and control, the system can rise the temperature according to the given heating curve, and can store a total of 20 400 different process heating curve.
- Adopting real internal circulation pure water cooling system; full dust-proof design, water temperature and liquid level monitoring in all aspects.
- The water circuit adopts the latest heat flow monitoring system.
- Comprehensive PLC water, electricity, gas automatic control and protection system.
- Very perfect IGBT power device overload, short circuit and false trigger, and over-voltage protection.
- Modular design of the whole machine, easy to install and maintain
- All parts of the whole machine to make serial number identification, and the schematic diagram of the full correspondence, greatly reducing the maintenance time, can be remote maintenance.
- Human-machine interface full-parameter data acquisition
- Man-machine interface display and operation, the whole machine operating parameters at a glance, easy to operate.

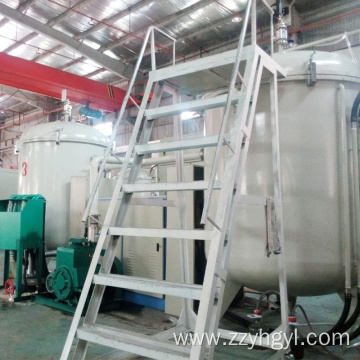

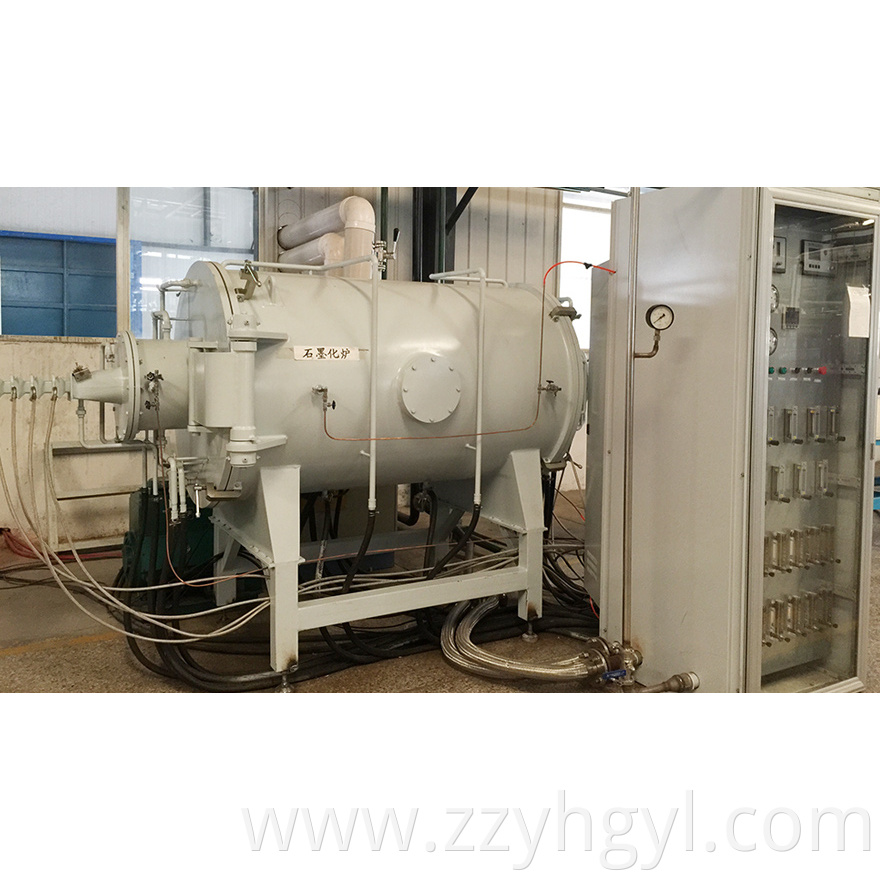

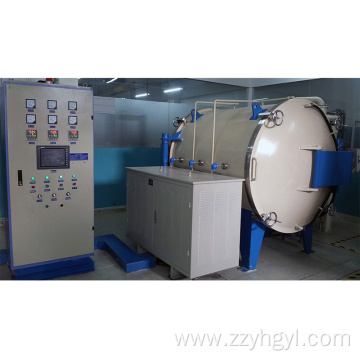

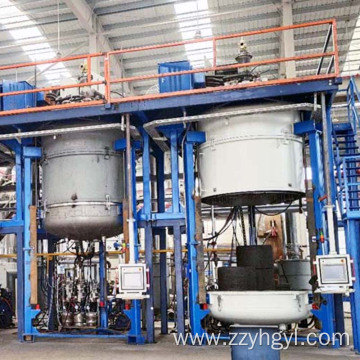

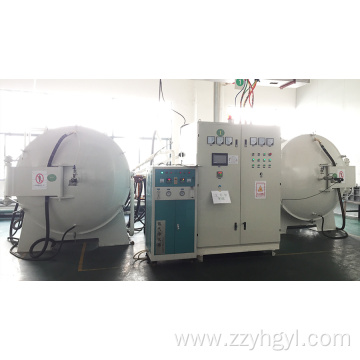

Product Showcase
